- Thermal Break Frame: A 100 x 85 x 63 mm thermal break aluminum frame limits heat transfer through the metal.
- 100 mm Door Panel: Fire-retardant polyurethane board or aluminum honeycomb core for insulation and sound control.
- Concealed 100# Hinges: Heavy-duty concealed hinges rated for 150 kg (about 330 lb).
- Wide Opening: Single or double doors that open up to 132 degrees.
- Three-Point Upgrade: Standard lock set with an optional integrated three-point lock.
Every installation is built to your exact specifications -- size, shape, pixel pitch, and configuration. Tell us what you need and we'll put together a custom quote.
Request a Custom QuoteThermal Break Performance, Hinged Entry

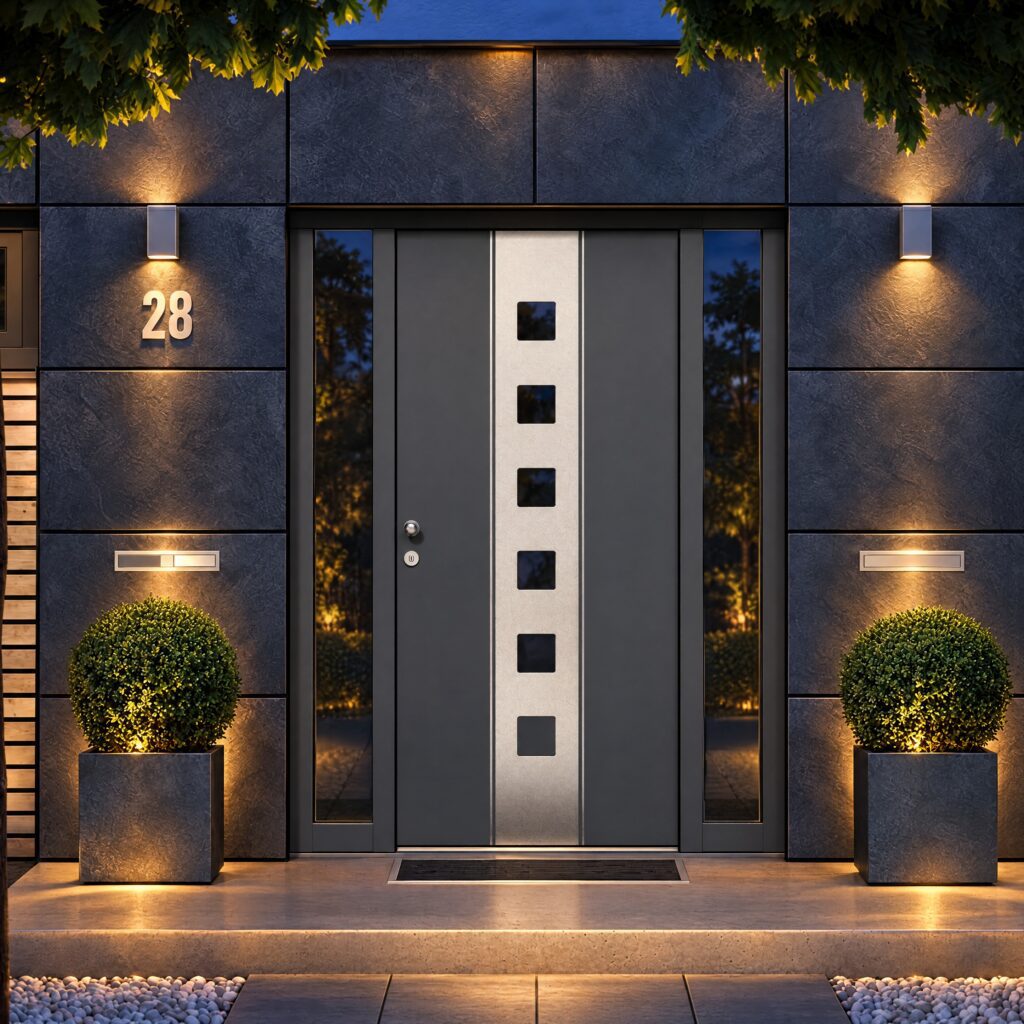

A thermal break aluminum frame puts an insulating barrier between the inner and outer metal to reduce heat transfer, while a 100 mm filled panel adds insulation and sound control. It is the hinged door to choose when comfort and energy use matter most.
Technical Specifications
100 x 85 x 63 mm thermal break aluminum frame with a fixed-width sealing strip.
100 mm thick, with a polyurethane fire-retardant board or aluminum honeycomb core. 4 mm face plate standard (3 mm to 10 mm available).
Thermal break hinge fittings. Single or double doors opening up to 132 degrees.
24 x 240 x 7068 lock set standard. Integrated three-point lock optional.
No threshold (15 mm gap), 32/10 mm or 85/63 mm.
Thermal Break Door Features

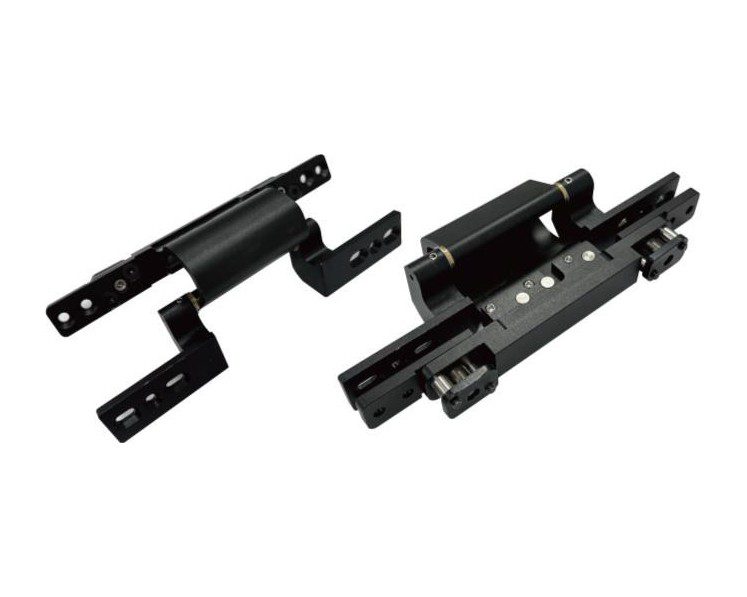

Rated for 150 kg
The 100# concealed hinge is made for thermal break door systems. Each hinge is rated for 150 kg (about 330 lb) and stays hidden when the door is closed.

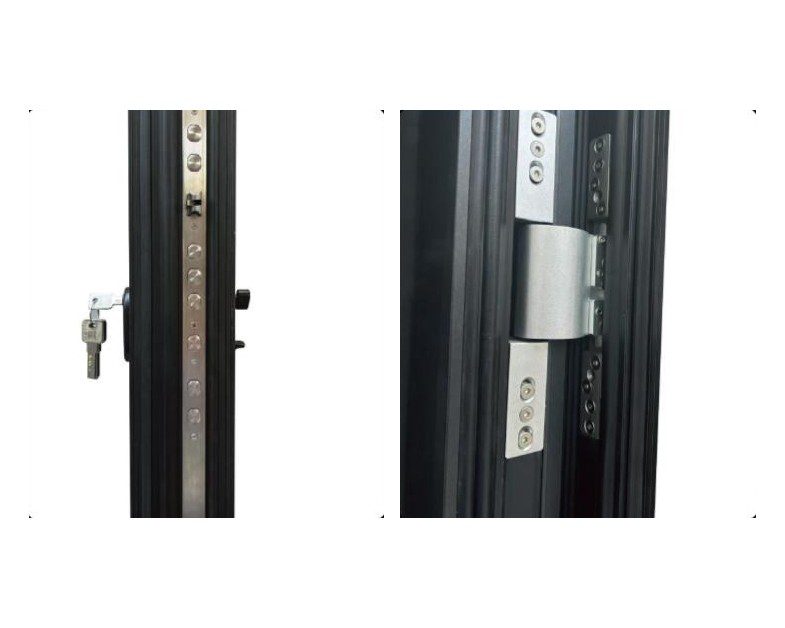

Lock Set with Three-Point Option
A 24 x 240 x 7068 lock set comes standard. Upgrade to an integrated three-point lock that secures the door at three points along the frame.

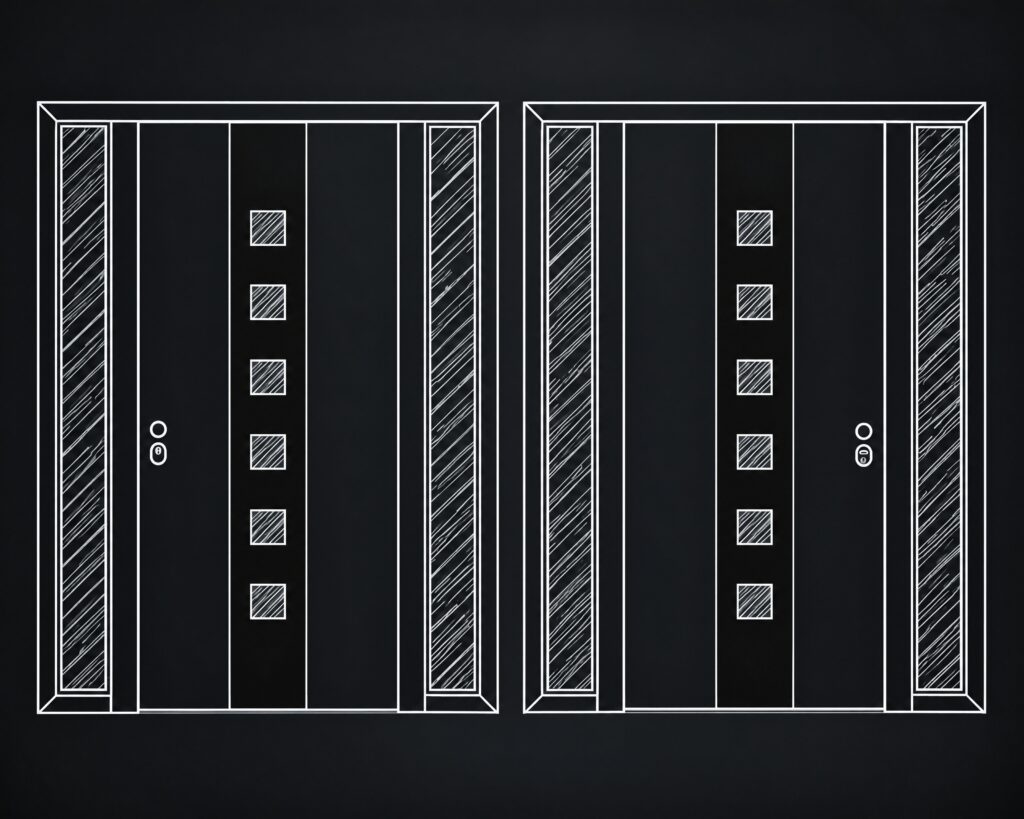

Drawn to Your Opening
Door, sidelights and trim cover are sized to your wall. The frame is welded as one unit, so we confirm the finished size and delivery access before production.
Configure Your Thermal Break Door

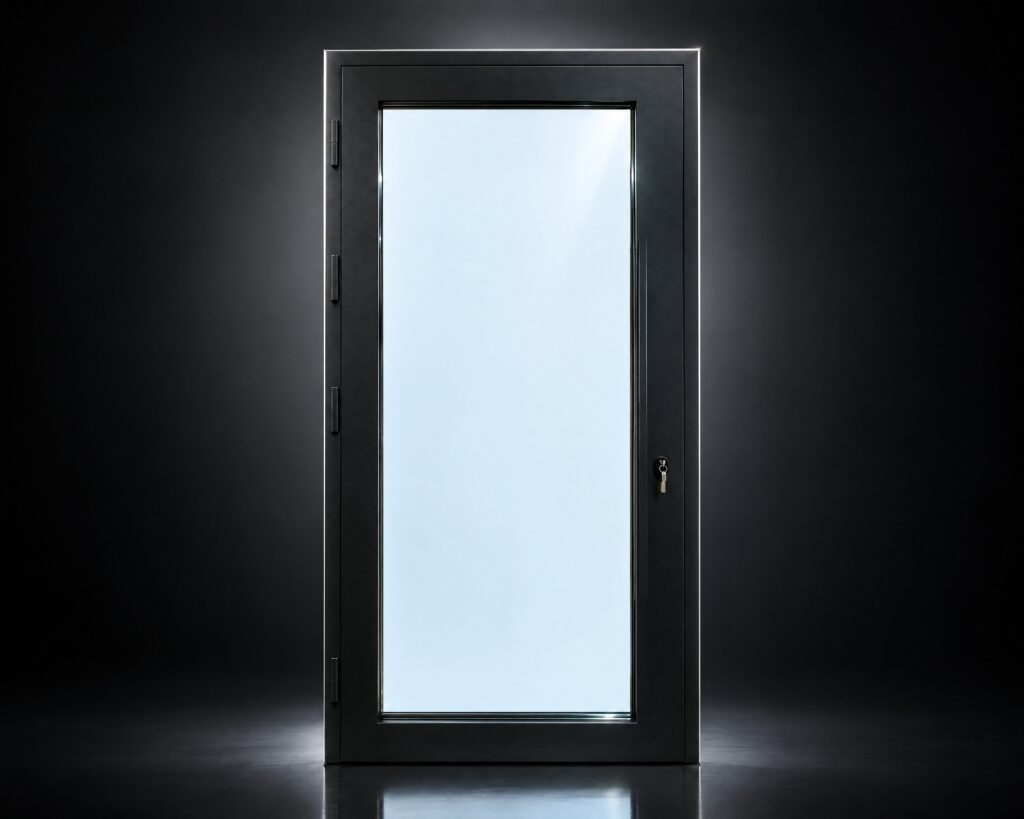

<p class="mt-6 max-w-md text-base leading-relaxed text-white/60">A single leaf with a large glass panel, with glass made to your specification.</p>

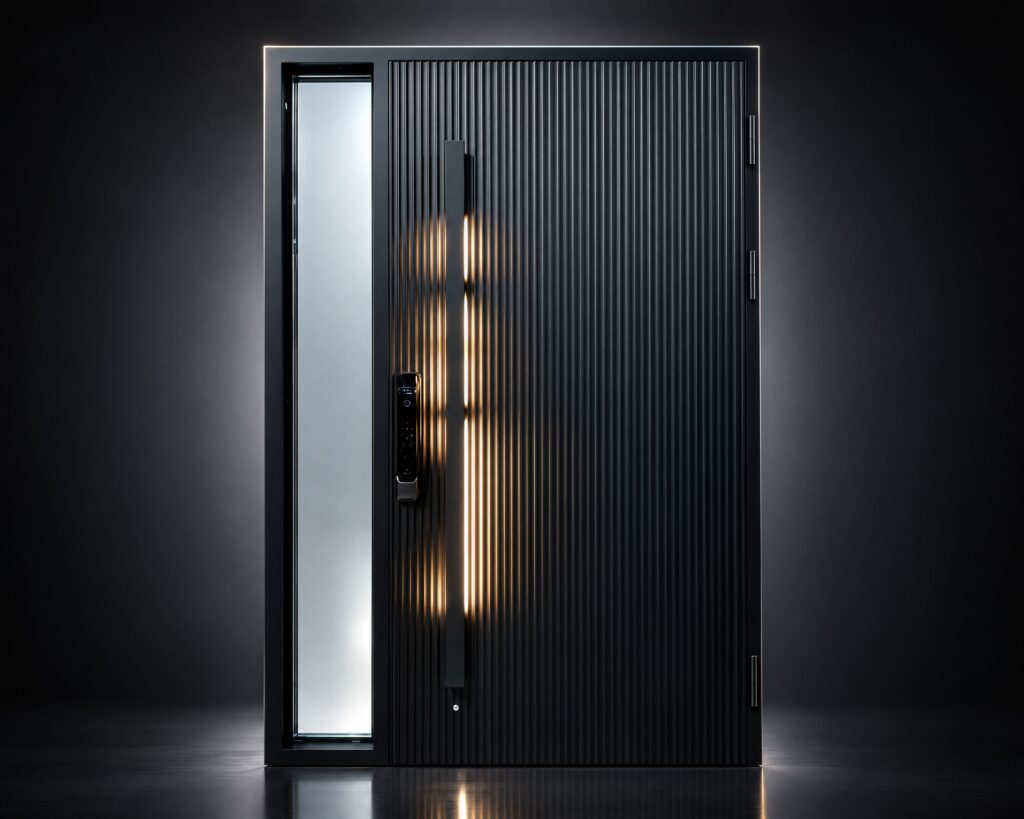

<p class="mt-6 max-w-md text-base leading-relaxed text-white/60">Pair the door with a fixed glass sidelight for a brighter entry.</p>

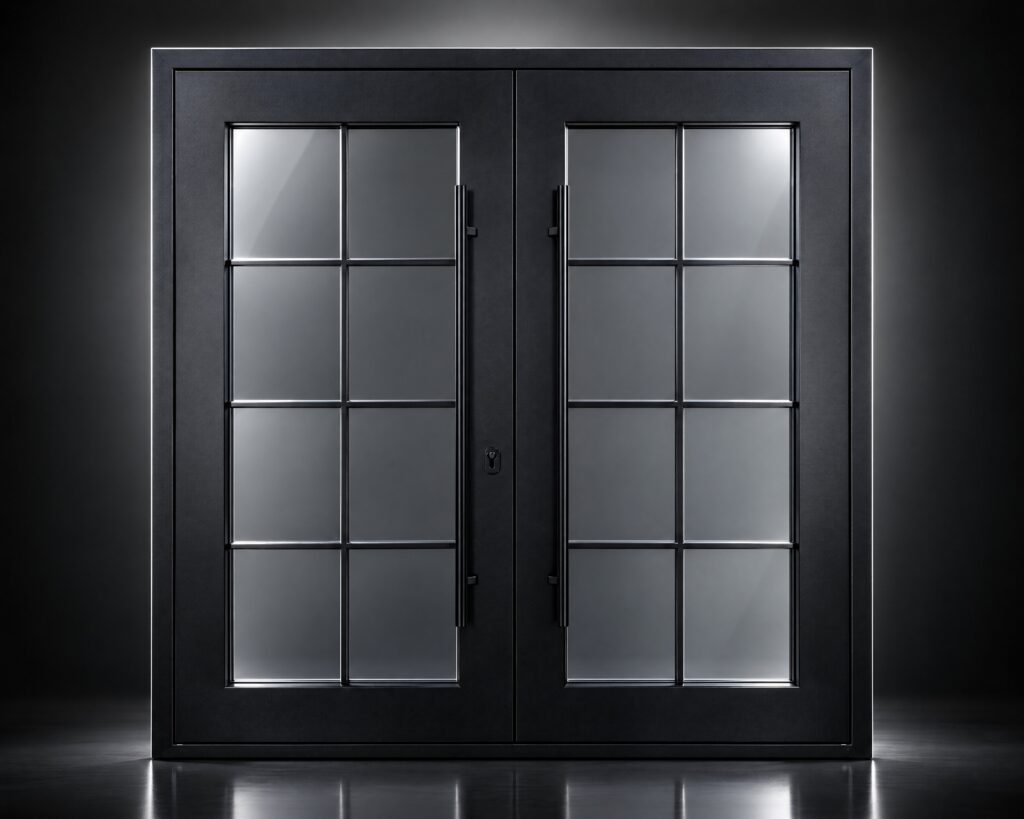

<p class="mt-6 max-w-md text-base leading-relaxed text-white/60">Two leaves in one thermal break frame for wide entrances, each opening up to 132 degrees.</p>
Frequently Asked Questions
A thermal break is an insulating barrier built into the aluminum frame. It separates the inner and outer metal, so less heat and cold pass through the frame than in a standard aluminum door.
The door panel is 100 mm thick, with a polyurethane fire-retardant board or aluminum honeycomb core. The aluminum face plate is 4 mm as standard, with 3 mm to 10 mm available.
Thermal break hinge fittings, including the 100# concealed hinge rated for 150 kg (about 330 lb).
No threshold (15 mm gap), a 32/10 mm threshold or an 85/63 mm threshold.
No. The frame is welded as one unit and cannot be disassembled, so we confirm the finished size and delivery access before production.
Use the Request a Custom Quote button or contact our team with your opening size, preferred style and color. We will reply with a quote for your project.
