- Floor Spring Pivot: Dorma, NHN or standard floor springs carry the weight of wide, heavy doors.
- 90 or 180 Degree Opening: Inward or outward opening, single or double.
- 100 mm Door Panel: Fire-resistant polyurethane board or aluminum honeycomb core.
- Dust-Proof Seal: Sealing strips on both sides of the frame plus hidden dust-proof strips top and bottom.
- Modular Frame: Oversized frames can be assembled on site.
Every installation is built to your exact specifications -- size, shape, pixel pitch, and configuration. Tell us what you need and we'll put together a custom quote.

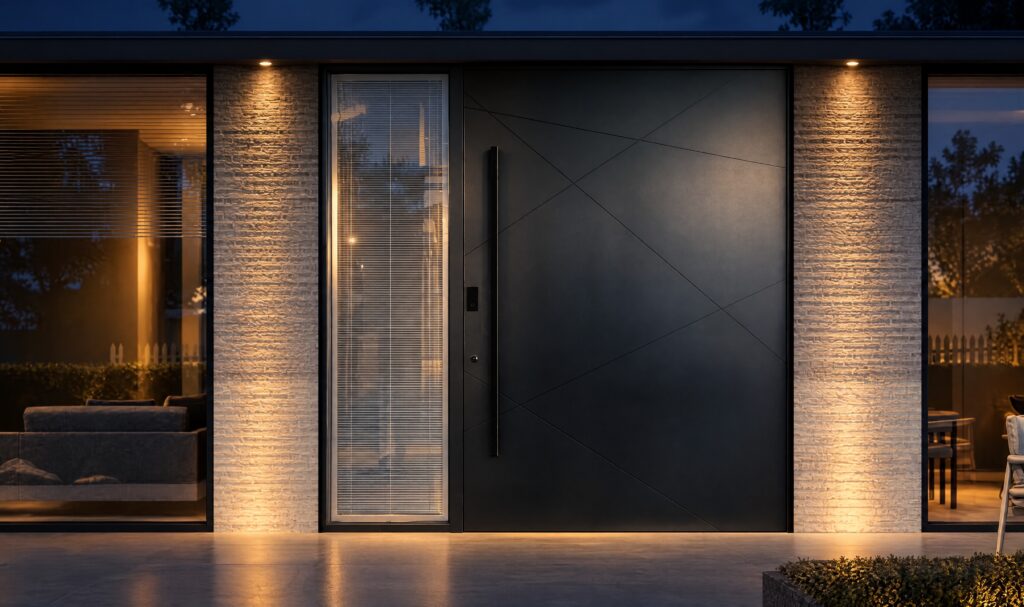

Request a Custom QuoteA Wide, Balanced Pivot Entry
Instead of hanging from side hinges, the 100 Series pivot door turns on a floor spring set in from the edge. That lets a wide, 100 mm panel swing smoothly, whether it opens 90 degrees in or out or a full 180 degrees.
Technical Specifications
100 mm thick, with a fire-resistant polyurethane board or aluminum honeycomb core. 4 mm face plate standard (3 mm to 20 mm available).
100 x 70 x 47 mm aluminum frame, sealing strips on both sides and hidden dust-proof strips at top and bottom.
Minimum width 1250 mm (about 49"). Height and width built to your opening.
Dorma, NHN or standard floor springs. Opens 90 or 180 degrees, inward or outward.
35 x 388 x 7068 lock set standard. Integrated three-point lock optional.
Pivot Door Features

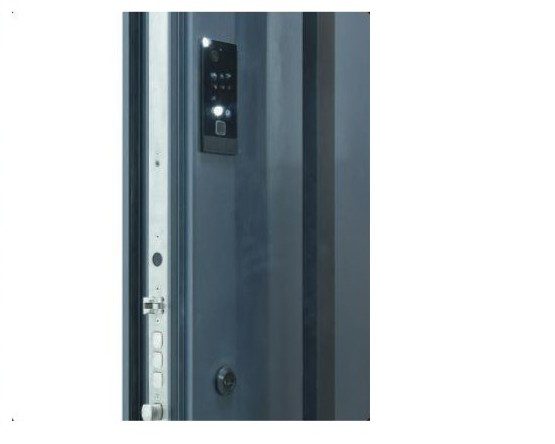

Clean Edges, Sealed Frame
Sealing strips on both sides of the frame and hidden dust-proof strips at the top and bottom keep drafts and dust out, while the lock and handle hardware keep a minimal look.

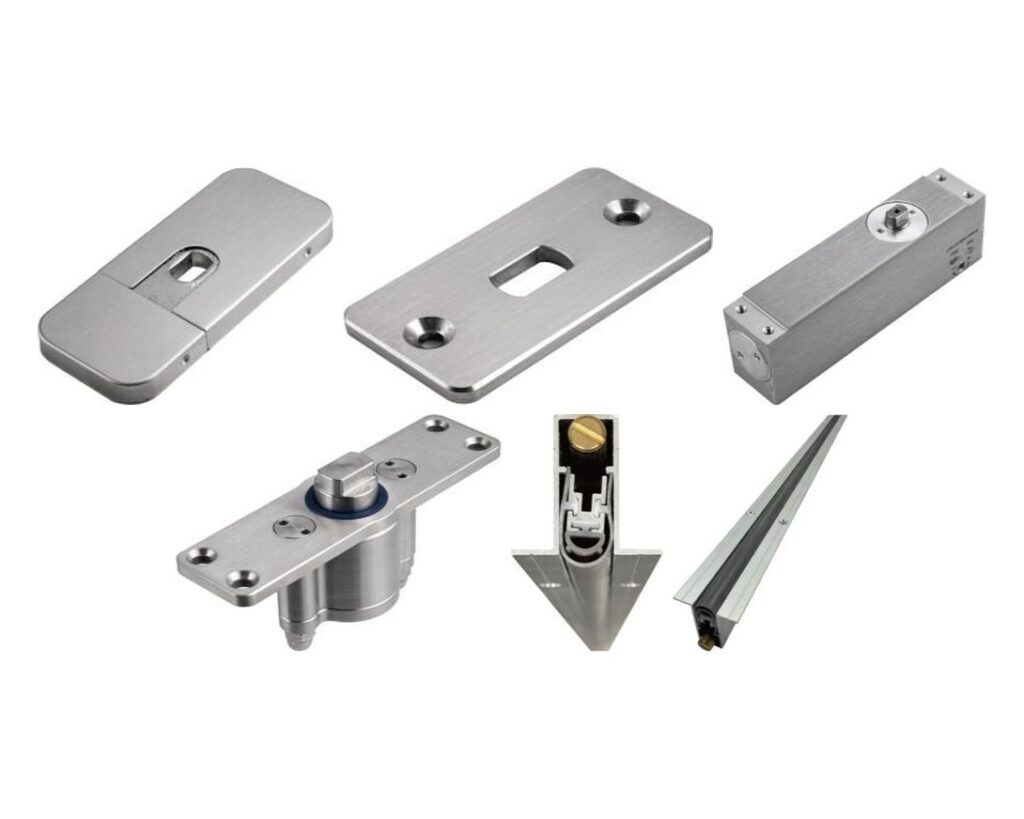

Floor Springs and Hydraulic Hinges
Choose Dorma floor springs rated up to 300 kg or NHN hydraulic pivot hinges rated up to 200 kg, plus a silent automatic dust strip that seals the gap under the door.

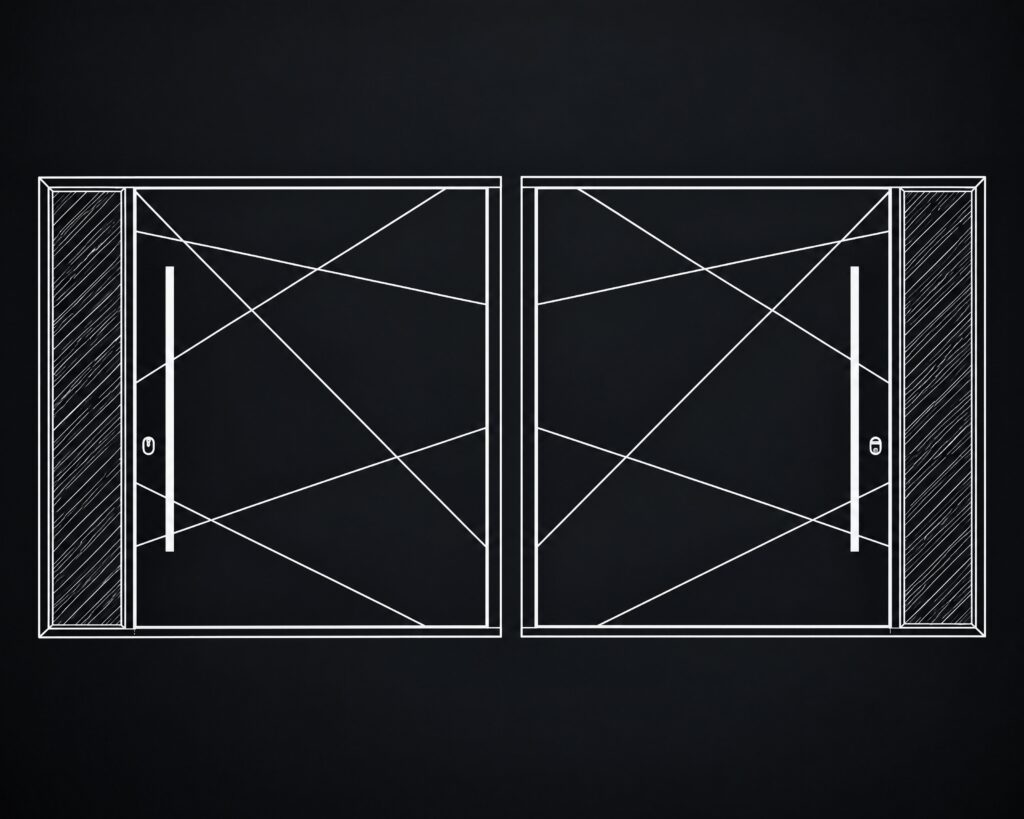

Built Wide, Built to Fit
Pivot doors start at 1250 mm (about 49") wide. For oversized doors, the modular outer frame can be taken apart and assembled on site.
Configure Your Pivot Door

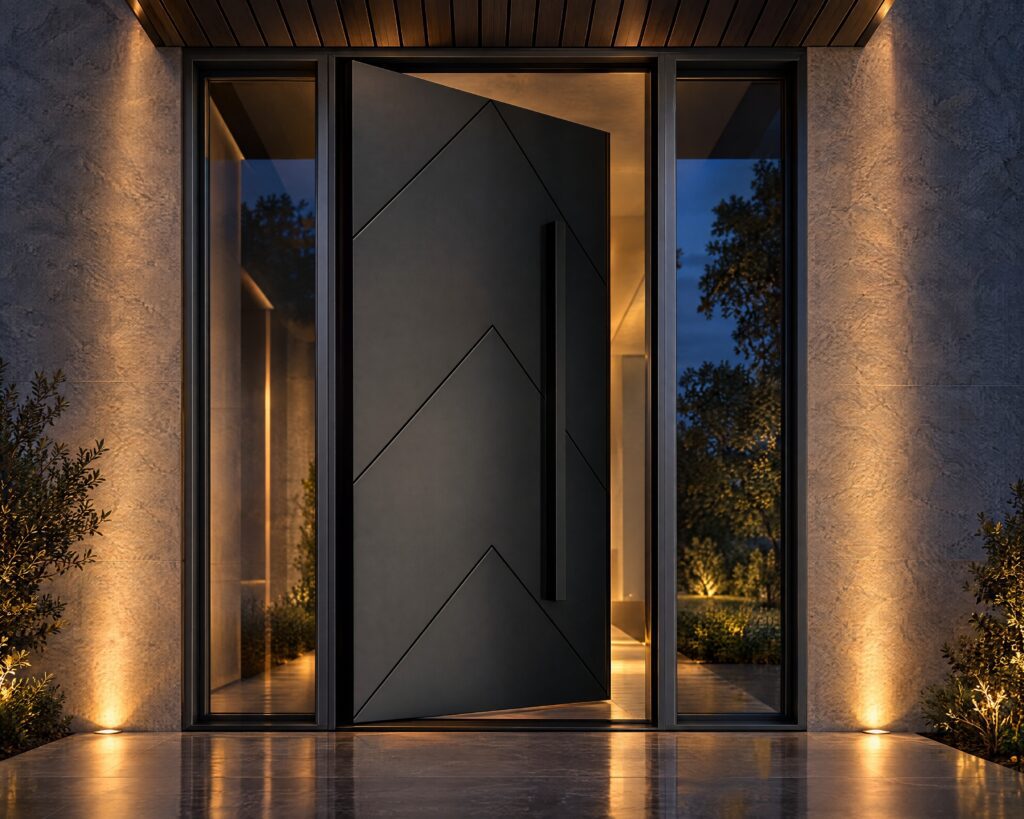

<p class="mt-6 max-w-md text-base leading-relaxed text-white/60">A single pivot leaf that opens 90 degrees inward or outward.</p>

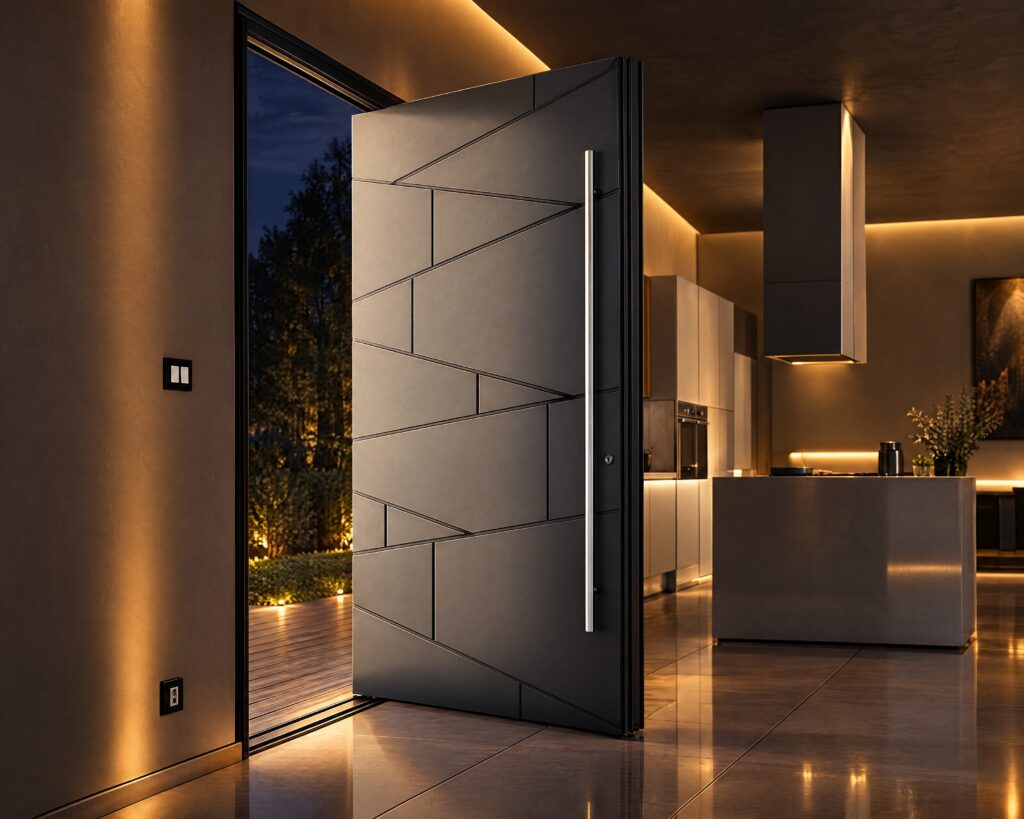

<p class="mt-6 max-w-md text-base leading-relaxed text-white/60">Configure the door to open a full 180 degrees for a wide, open-plan entry.</p>

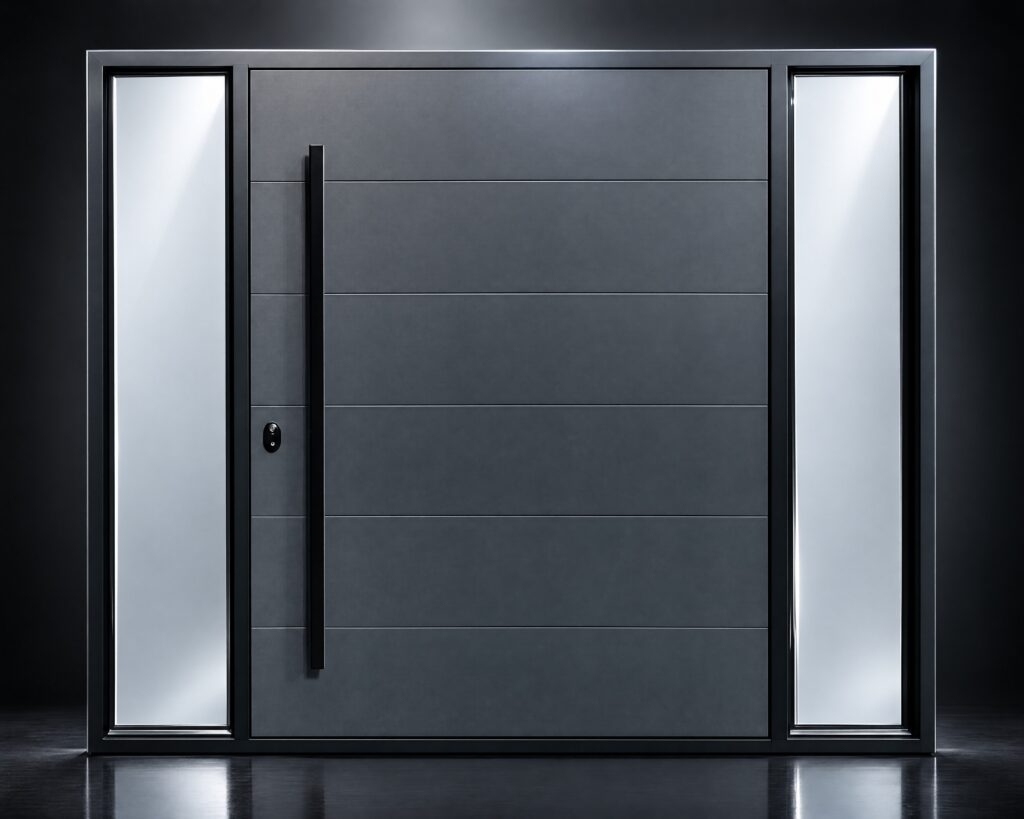

<p class="mt-6 max-w-md text-base leading-relaxed text-white/60">Frame the door with fixed glass sidelights, sized to your opening.</p>
Frequently Asked Questions
A pivot door turns on pivot points at the top and bottom of the door, set in from the edge, instead of hanging on side hinges. This lets very wide, heavy doors open smoothly.
The minimum width is 1250 mm (about 49"). Height and width are built to your opening.
Single or double doors can open 90 degrees inward or outward, or 180 degrees.
Dorma, NHN or standard floor springs. Options include Dorma floor springs rated up to 300 kg and NHN hydraulic pivot hinges rated up to 200 kg.
Yes. Frames can be welded as one piece or built with a modular outer frame that is assembled on site for oversized doors.
Use the Request a Custom Quote button or contact our team with your opening size, preferred style and color. We will reply with a quote for your project.
